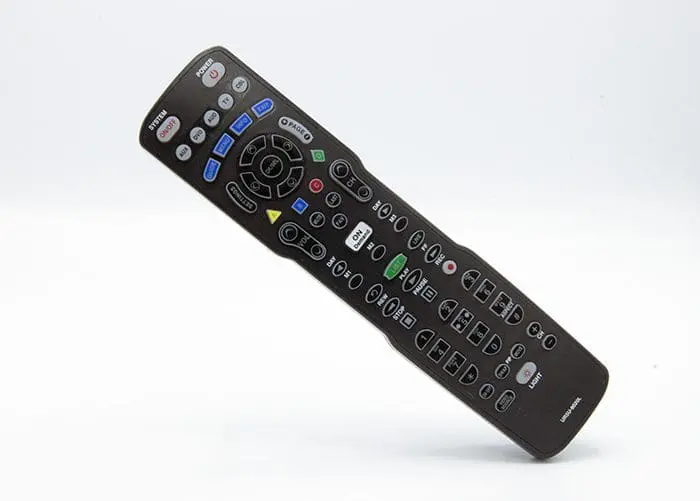

PHAZR-5 Remote Control
How do I program my remote control to the TV with codes?
Complete the following steps.
- Press and hold TV and OK buttons simultaneously for 3 seconds.
- When released the TV button will remain lit
- Enter 3 digit “Manufacturer’s Code” for the device (Refer to the PHAZR-5 User Guide PDF for your TV’s code).
- If it is the correct code, TV will power off.
- If TV does not power off, repeat step 2 and proceed to next code.
- When the correct code is entered, TV will power off.
- When TV powers off, press TV button again to save the code.
How do I program my remote control to the TV without codes?
Complete the following steps.
- Press and hold TV and OK buttons simultaneously for 3 seconds.
- When released the TV button will remain lit
- Press the CHANNEL UP button repeatedly until the TV powers off.
- Press the TV button to save the code.
How do I lock the volume functions to my TV?
Complete the following steps.
- Press and hold CABLE and OK buttons simultaneously for 3 seconds.
- When released the CABLE button will remain lit
- Press VOLUME UP button once.
- Press TV button.
- Press CABLE button to put remote back in cable mode.
How do I program my remote control to my cable set-top box?
Complete the following steps.
- Press and hold CABLE and OK buttons simultaneously for 3 seconds.
- When released the CABLE button will remain lit
- Enter 3 digit “Manufacturer’s Code” (refer to the list below)
- 002
- 111
- 148
- If the correct code is entered, the Cable Set-top box will power off & you should proceed to step 6.
- If the Cable Set-top box does not power off, repeat step 2 by trying another code, proceeding to the next code.
- When the Cable Set-top box powers off, the remote control is programmed.
- Press CABLE button again to save the code.
How do I program the system on/off button on my remote?
Complete the following steps.
- Press and hold ON/OFF and OK buttons simultaneously for 3 seconds.
- When released the CABLE button will remain lit.
- Press TV
- Press POWER
- Press CABLE
- Press POWER
- CHANNEL UP
- Remote should now power the TV and the Cable Set-top off/on with a single press of the System On/Off
